Ultra-high speed multi-station notching and stacking machine
This battery stacking machine integrates cathode/anode unwinding, automatic splicing, and precision cutting into a seamless workflow. Engineered as a high-performance lithium battery stacking machine, it features advanced size and surface defect inspection to ensure superior battery cell stacking quality. With an efficiency of 0.1s/pcs, this battery manufacturing equipment provides the high-speed reliability required for a modern battery electrode sheet stacking machine manufacturer.
Specifications:
Compatible with three or four workstaions
Efficiency:
0.15s/pcs
[ 01 ]

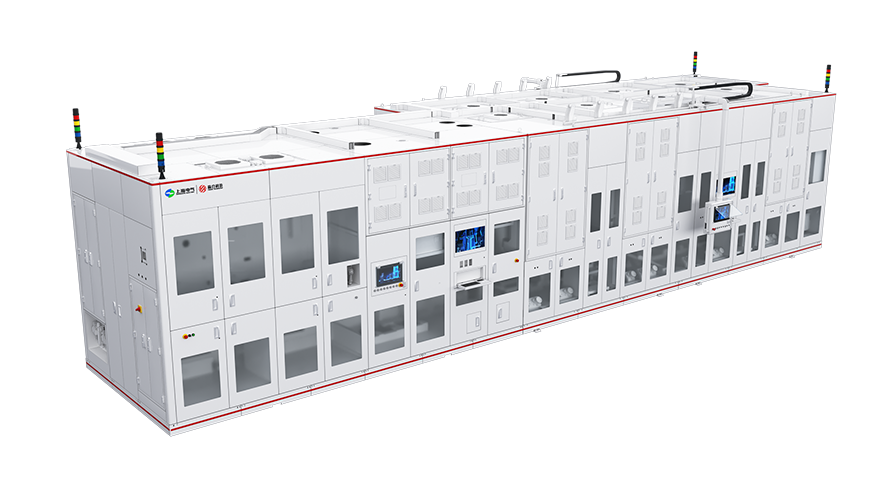

Laser notching and stacking integrated machine
Optimizing lithium battery electrode forming, this specialized battery stacking machine synchronizes precise laser cutting with 4-station Z-type battery cell stacking. Advanced CCD inspection ensures only premium layers proceed through this battery manufacturing equipment, providing a stable foundation for any high quality battery stacking machine production line.
Operating line speed:
≥240ppm
Dust removal effect:
10000-level Cleanliness
[ 02 ]

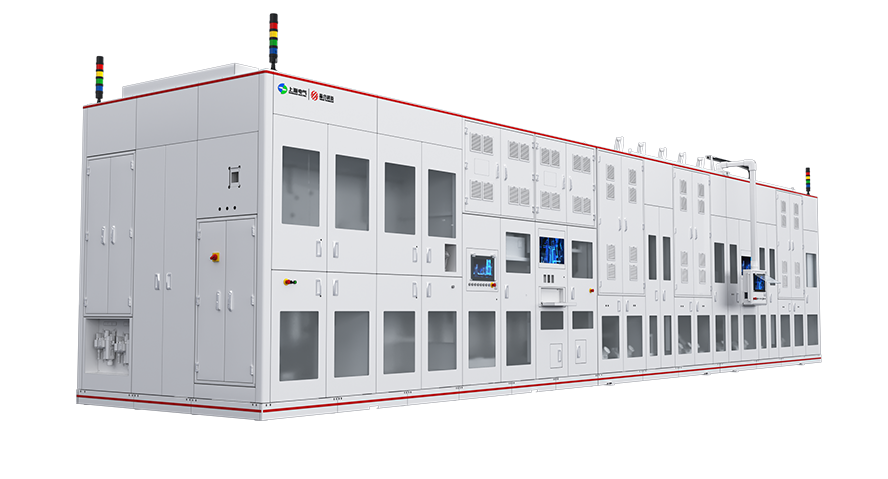

Ultra-high speed multi-station cutting and stacking machine
2 cathode unwinding, 2 anode unwinding, laser cutting, CCD inspection after cutting, effectively eliminating unqualified electrodes; equipped with 4 Z-type stacking stations, high efficiency, mature technology integration, small space, high profitability, adapted to mass production lines.
Cell thickness:
10~30mm
Efficiency:
0.39s/pcs
[ 03 ]

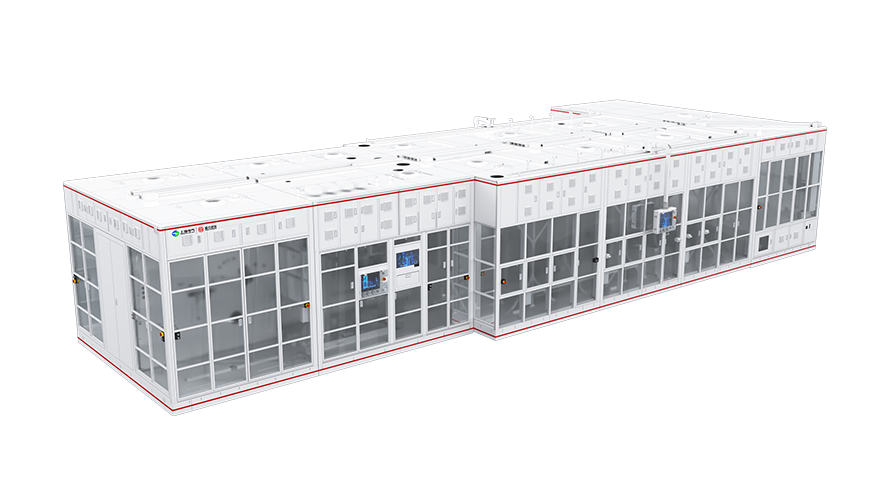

Notching and stacking machine (590 series)
Achieve unmatched precision in battery cell stacking with this high-speed system, featuring specialized CCD inspection after cutting for immediate, effective rejection of unqualified electrodes. Engineered for maximum productivity within a lithium battery stacking machine workflow, the 590 series utilizes a mature, compact 3 or 4-station Z-type layout that saves valuable floor space. As a premier battery stacking machine, it offers the perfect balance of advanced technology and space efficiency required by any modern battery electrode sheet stacking machine manufacturer.
Specifications:
Compatible with three or four stacking stations
Efficiency:
0.15s/pcs
[ 04 ]
