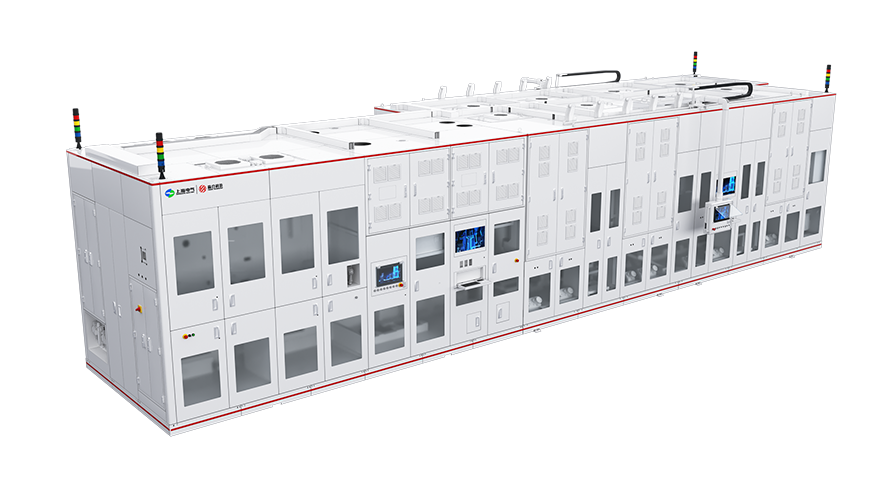

Laser notching and stacking integrated machine
Efficiency:
0.39s/pcs
2 cathode unwinding, 2 anode unwinding, laser cutting, CCD inspection after cutting, effectively eliminating unqualified electrodes; equipped with 4 Z-type stacking stations, high efficiency, mature technology integration, small space, high profitability, adapted to mass production lines.
Equipment Parameters
Main models | YMSA150F |
|---|---|
Equipment size (mm) | 15500(L) *4300(W)*3000(H) |
Cell height (mm) | 200~275 |
Cell width (mm) | 80~120 |
Cell thickness (mm) | 10~30 |
Efficiency | Laser cut tabs 60~70m/min; stacking 0.39s/pcs |
Related Products
-
Laser notching and slitting integrated machine
Master the electrode prep stage with advanced real-time speed and energy tracking, ensuring unrivaled cutting consistency. Beyond high-precision battery notching, this system tackles the industry'
s biggest pain point: dust. With proprietary 3D convective and super air knife solutions, it delivers a cleaner, defect-free electrode for any high speed winding machine line.
-
Laser cleaning machine
This dual-station system vaporizes active materials on both sides, ensuring pristine surfaces for flawless TAB welding. By eliminating coating residues in real-time, it optimizes the entire battery winding machine workflow and secures high-yield results for any high speed winding machine line. The ultimate efficiency booster for a high-tier lithium ion battery winding machine facility.
-
Laser scribing/perforating machine
This high-precision etching system optimizes electrode surfaces by vaporizing active materials with dual-laser efficiency, maintaining strict pm0.1mm spacing accuracy and 99.5% pass rates. By eliminating coating defects before the cell takes shape, it acts as a critical quality gate that streamlines any battery winding machine production workflow.
