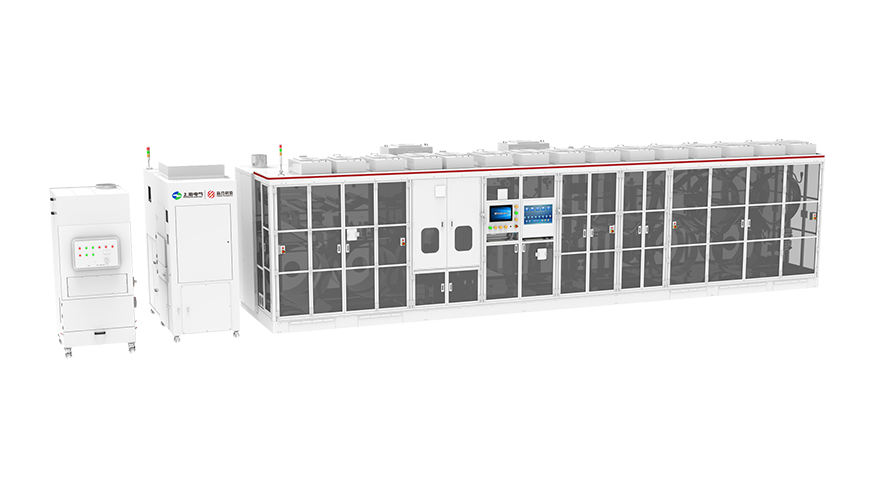

Laser notching and slitting integrated machine
Linear speed:
Max. 120m/min
Electrode thickness Specification:
60-250μm
The equipment adopts globally renowned brands of lasers, galvanometers, and F-theta lenses, combined with advanced laser control algorithms to achieve real-time speed and energy tracking during cutting, ensuring consistent cutting quality. For many years, we have been dedicated to the research of customers’ cutting processes and dust control. We've developed a variety of dust removal solutions — including convective three-dimensional dust removal, vertical cutting dust removal, super air knife dust removal, and brush dust removal, providing customers with more thorough dust removal solutions!
Equipment Parameters
Equipment model | YHLC800A |
|---|---|
Overall line dimensions (mm) | 8000(L)*2300(W)*2800(H) |
Operating line speed(m/min) | 60-120 |
Laser cutting burrs(μm) | ≤10 |
Electrode slitting burrs(μm) | ≤7 |
Electrode width specifications(mm) | 150-500 |
Reel diameter specifications(mm) | ≤1000 |
Electrode slitting error(mm) | ±0.2 |
Accuracy of tab cutting position(mm) | ±0.2 |
| Accuracy of tab shape cutting(mm) | ±0.2 |
Accuracy of correction control(mm) | ±0.1 |
Accuracy of Mark hole position(mm) | ±0.3 |
Electrode thickness specifications(μm) | 60-250 |
Foil thickness specifications(μm) | 4.5-20 |
Dust removal effect | 10000-level Cleanliness |
Related Products
-
Laser cleaning machine
This dual-station system vaporizes active materials on both sides, ensuring pristine surfaces for flawless TAB welding. By eliminating coating residues in real-time, it optimizes the entire battery winding machine workflow and secures high-yield results for any high speed winding machine line. The ultimate efficiency booster for a high-tier lithium ion battery winding machine facility.
-
Laser scribing/perforating machine
This high-precision etching system optimizes electrode surfaces by vaporizing active materials with dual-laser efficiency, maintaining strict pm0.1mm spacing accuracy and 99.5% pass rates. By eliminating coating defects before the cell takes shape, it acts as a critical quality gate that streamlines any battery winding machine production workflow.
-
Ultra-high speed multi-station cutting and stacking machine
2 cathode unwinding, 2 anode unwinding, laser cutting, CCD inspection after cutting, effectively eliminating unqualified electrodes
equipped with 4 Z-type stacking stations, high efficiency, mature technology integration, small space, high profitability, adapted to mass production lines.
