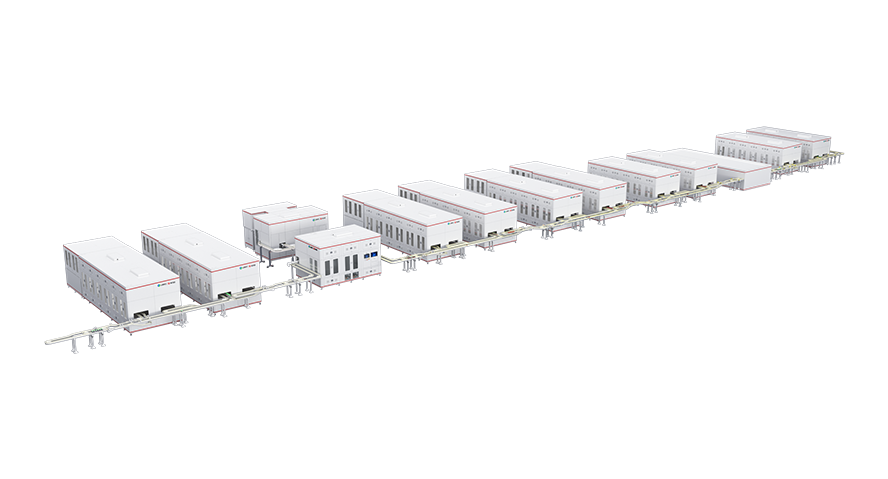

Automatic assembly line for cylindrical batteries
Efficiency:
≥260PPM
High capacity: production efficiency can reach over 260 PPM.
Magnetic levitation: the entire line within the equipment uses magnetic levitation for cell handling, with a handling efficiency of up to 2 m/s.
Turret mechanism: the shell insertion/electrode penetration welding machine uses a turret mechanism, with a single machine cycle time of up to 280 PPM.
Electrode pole penetration laser welding: uses flying welding technology, with a laser utilization rate of over 80%.
Cam positioning: the equipment uses a cam positioning method, providing high positioning accuracy, fast response, and low energy consumption.
Compact footprint: with the same production capacity, the equipment occupies less space, saving factory resources.
Equipment Parameters
Mode | YLZ150F-AAA |
|---|---|
Cylindrical, standard specification (4695), single line ≥ 260PPM | |
Overall size (mm) | 70000（L）*10000（W）*3000（H） |
Yield rate | ≥99.5% |
Failure rate | ≤2% |
Standard specification battery (mm) | 4695 |
Compatibility range (mm) | Diameter: 46 Height: 80-150 |
| MES | Supports data communication functionality with the MES |
Remark | The production capacity may vary depending on the product size and process |
