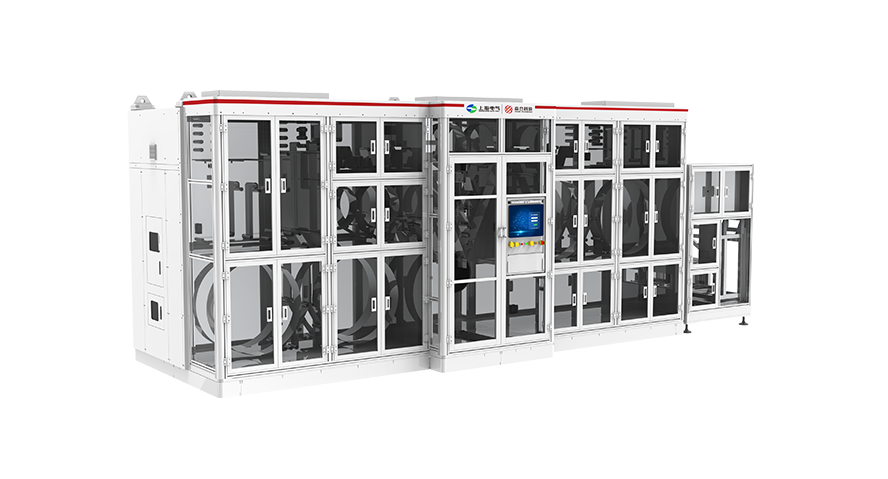

High-speed HEV fully automatic winding machine
Efficiency：
＞15PPM
First-pass yield:
99.5%
This equipment is mainly used for fully automatic winding of low-capacity battery. It features online overhang detection and closed-loop control. After cold pressing for pre-shaping and Hi-pot (high voltage) test, the discharging is completed through the conveyor.
Equipment Parameters
| Series/Item | 160Series |
|---|---|
Cell height（mm） | 50-200 |
| Cell width（mm） | 50-200 |
| Cell thickness（mm） | 6-20 |
| Efficiency | ≥15PPM |
| First-pass yield | 99.5% |
| Alignment（mm） | ±0.3mm |
Related Products
-
21700 High-speed Winding Machine
Operating at 40PPM, this battery winding machine excels in 24-hour cylindrical cell production. The automatic winding machine integrates ultrasonic welding and CCD detection for a ≥99.8% yield. It streamlines electrode loading and testing, ensuring a high-performance lithium ion battery winding machine workflow.
-
3C electrode-making integrated machine
This advanced battery winding machine streamlines the fully automated production of prismatic 3C lithium-ion cells with integrated CCD online detection and closed-loop control. Delivering efficiency over 21 PPM, it provides the high-speed reliability essential for any professional lithium ion battery winding machine factory.
-
Prismatic power battery winding machine
This high-performance battery winding machine streamlines fully automated production with integrated online overhang detection and closed-loop control. Engineered for precision, the automatic winding machine features cold pressing, pre-shaping, and Hi-pot testing before conveyor unloading to ensure a 99.5% qualification rate.
