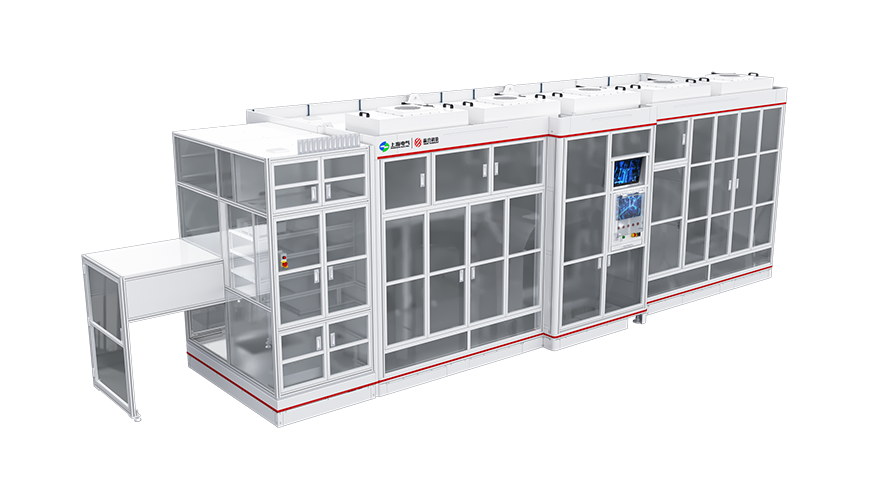

Prismatic power battery winding machine
Efficiency：
6ppm(Length of electrode: 16m)
Qualification rate:
≥99.5%
The equipment is mainly used for the fully automated winding of prismatic battery cells, featuring online overhang detection and closed-loop control. After cold pressing, pre-shaping, and Hi-pot testing, the material is unloaded via a conveyor belt, ensuring efficient operation in battery winding machine processes.
Equipment Parameters

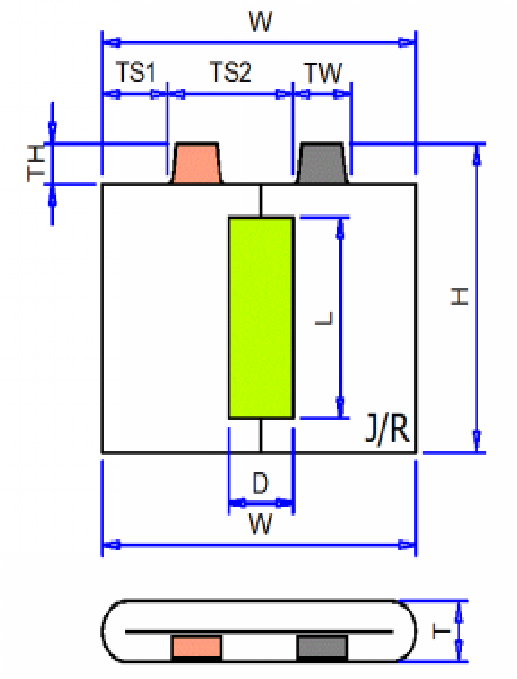

Equipment model | YWPB300 | YWPB450K | Cell diagram |
|---|---|---|---|
Compatibility range | H:80-270 W:100-300 T:10-40 TH:≤35 | H:200-420 W:100-230 T:10-40 TH:≤35 |  |
Line speed fluctuation | ＜±1 | ＜±1 | |
Tension fluctuation | ＜±3% | ＜±3% | |
Winding alignment(mm) | ＜±0.3 | ＜±0.3 | |
Efficiency | 6ppm (Length of electrode: 16m) | 6ppm (Length of electrode: 16m) | |
| Qualification rate | ≥99.5% | ≥99.5% |
Related Products
-
Prismatic power battery laser and winding integrated machine
This Prismatic battery winding machine combines precise battery notching and automatic winding machine tech into one system. With CCD detection and closed-loop tension control, it ensures a ≥99.5% yield for large cells. This high speed winding machine streamlines the lithium ion battery winding machine process with industrial-grade accuracy.
-
Laser notching and slitting integrated machine
Master the electrode prep stage with advanced real-time speed and energy tracking, ensuring unrivaled cutting consistency. Beyond high-precision battery notching, this system tackles the industry'
s biggest pain point: dust. With proprietary 3D convective and super air knife solutions, it delivers a cleaner, defect-free electrode for any high speed winding machine line.
-
Laser cleaning machine
This dual-station system vaporizes active materials on both sides, ensuring pristine surfaces for flawless TAB welding. By eliminating coating residues in real-time, it optimizes the entire battery winding machine workflow and secures high-yield results for any high speed winding machine line. The ultimate efficiency booster for a high-tier lithium ion battery winding machine facility.
