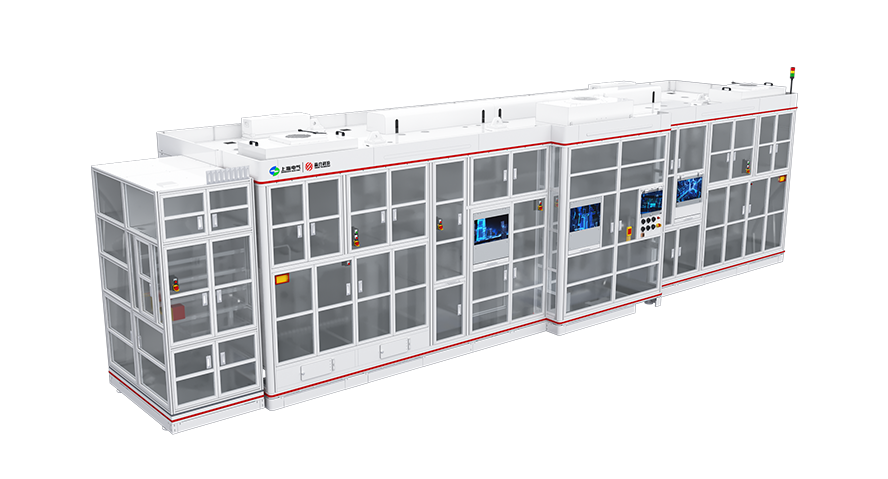

Prismatic power battery laser and winding integrated machine
Efficiency：
6ppm(Length of electrode: 16m)
Linear speed :
Max3000mm/s
This equipment integrates battery powered laser tab forming and automatic winding machine. Key functions include automatic roll changing, multi-stage dust removal for electrodes, laser cutting of tabs, CCD defect detection, application of protective adhesive tape to the cathode electrode, battery winding machine process control, and cold pressing and shaping of the cell. Advanced algorithm control ensures closed-loop adjustment of tab spacing, automatic tension control, and precise alignment during winding.
Equipment parameters:
Equipment model
YWPB300K
Compatibility range mm
H：80-270
W：100-300
T：10-40
TH:≤35
Tab misalignment
≤±2mm
Laser cutting burrs
＜10μm
Efficiency
6ppm
Length of electrode: 16m
Qualification rate
≥99.5%
Cell diagram
Equipment Parameters
Equipment model | YWPB300K | Cell diagram |
|---|---|---|
Compatibility range | H：60-280mm； W：80-320mm T：10-40mm； TH≤40mm |  |
Tab misalignment(mm) | ≤±5 | |
Tension fluctuation | ＜±3% | |
Laser cutting burrs(μm) | ＜10 | |
Efficiency | 6ppm (Length of electrode: 16m) | |
| Qualification rate | ≥99.5% |
