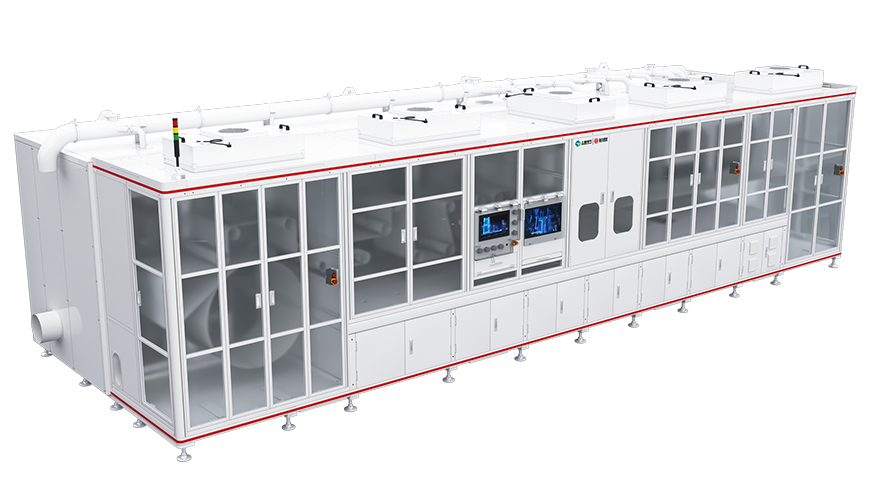

Laser Notching and Cutting Integrated Machine
Efficiency：
Max.300PPM
Electrode slitting error:
±0.2mm
The equipment integrates globally renowned brands of lasers, galvanometers, and F-theta scanning lenses, combined with advanced laser control algorithms to achieve real-time speed and energy tracking during cutting, ensuring consistent cutting quality. This product supports integrated cutting of the electrode and tab forming for anode and cathode. It offers flexible options for either mechanical cutting or laser cutting of electrode sheets.
Equipment Parameters
设备型号 | YHLC800A |
|---|---|
Overall line dimensions (mm) | 10000(L)*2300(W)*2600(H) |
Operating line speed | ≥300PPM |
Laser cutting burrs | ≤10μm |
Electrode cutting burrs | ≤10μm |
Electrode width specification | 60~800mm |
Reel diameter specifications | ≤1000mm |
Accuracy of electrode cutting | ±0.2mm |
Accuracy of tab cutting position | ±0.2mm |
Accuracy of tab shape cutting | ±0.2mm |
Accuracy of correction control | ±0.1mm |
Electrode thickness specification | 60-250μm |
Foil thickness specifications | 4.5-20μm |
Dust removal effec | 10000-level Cleanliness |
Related Products
-
Laser notching and slitting integrated machine
Master the electrode prep stage with advanced real-time speed and energy tracking, ensuring unrivaled cutting consistency. Beyond high-precision battery notching, this system tackles the industry'
s biggest pain point: dust. With proprietary 3D convective and super air knife solutions, it delivers a cleaner, defect-free electrode for any high speed winding machine line.
-
Laser cleaning machine
This dual-station system vaporizes active materials on both sides, ensuring pristine surfaces for flawless TAB welding. By eliminating coating residues in real-time, it optimizes the entire battery winding machine workflow and secures high-yield results for any high speed winding machine line. The ultimate efficiency booster for a high-tier lithium ion battery winding machine facility.
-
Laser scribing/perforating machine
This high-precision etching system optimizes electrode surfaces by vaporizing active materials with dual-laser efficiency, maintaining strict pm0.1mm spacing accuracy and 99.5% pass rates. By eliminating coating defects before the cell takes shape, it acts as a critical quality gate that streamlines any battery winding machine production workflow.
